High Precision Reaming Shells Drilling Rig Tools Q" Series
Reaming Shell
Specifications
| Item | Set Diameter (mm) |
| AQ | 47.88~48.13 |
| BQ | 59.82~60.07 |
| NQ | 75.57~75.82 |
| HQ | 95.85~96.27 |
| PQ | 122.43~122.81 |
| BQ3 | 59.82~60.07 |
| NQ2 | 75.57~75.82 |
| NQ3 | 75.57~75.82 |
| HQ3 | |
| PQ3 | 122.43~122.81 |
| B46 | 46.2~46.4 |
| B56 | 56.2~56.4 |
| B66 | 66.14~66.4 |
| B76 | 76.2~76.5 |
| B86 | 86.2~86.5 |
| B101 | 101.2~101.5 |
| B116 | 116.2~116.6 |
| B131 | 131.19~131.57 |
| B146 | 146.22~146.6 |
| T246 | 46.2~46.4 |
| T256 | 56.2~56.4 |
| T266 | 66.14~66.4 |
| T276 | 76.2~76.5 |
| T286 | 86.2~86.5 |
| T2101 | 101.2~101.5 |
| T676 | 76.2~76.5 |
| T686 | 86.2~86.5 |
| T6101 | 101.2~101.5 |
| T6131 | 131.19~131.57 |
| T6146 | 146.22~146.6 |
| NWG | 75.57~75.82 |
| HWG | 99.11~99.36 |
| NWM | 75.57~75.82 |
| NMLC | 75.57~75.82 |
| HMLC | 97.80~98.20 |
Description:
Brief Introductions of Reaming Shells
Reaming shell is used to couple the drill bit with the core barrel. It is suitable for use on all
conventional and wireline core barrel. This product is mainly designed to ream the hole to the
standard diameter. It can keep the stability of the core barrel. When the old bit is replaced by
the new one, reaming shell can also provide sufficient clearance for the new bit. It can also help
to resist the abrasion of the core barrel. This type of diamond tool is physically longer than the
standard type. So for the compensation of the difference in reaming shell length, an appropriate
inner tube extension is necessary to be used. Ranging from broken and abrasive to consolidated
and non-abrasive formations, reaming shells are all suitable to use. We can produce reaming shells
with 6", 10" and 18" length. Ranging from broken and abrasive to consolidated and non-abrasive
formations, reaming shells are all suitable to use. We can produce reaming shells with 6", 10" and
18" length.
Q" Series: AQ,BQ,NQ,HQ,PQ(Front end & Back end Type)
T Series: T36,T46,T56,T66,T76,T86
WT Series: RWT,EWT,AWT,BWT,NWT,HWT(Single Tube/Double Tube)
WG Series: EWG,AWG,BWG,NWG,HWG (Single Tube/Double Tube)
WM Series: EWM,AWM,BWM,NWM
T2/T6 Series: T256,T266,T276,T286,T2101/T676,T686,T6101,T6116, T6131,T6146,T6H
Others: NMLC,HMLC,LTK48,LTK60,ect…
Product Tags:
|
|

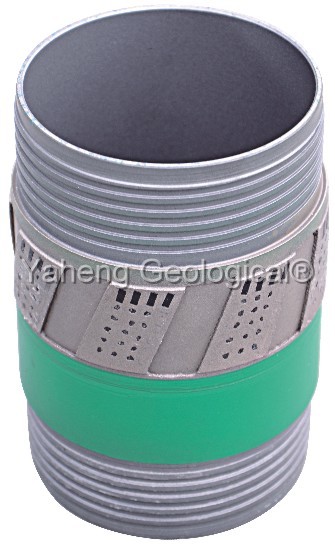

T - series High Speed Rock Diamond Reamer 6" 10" 18" Length Drilling Rig Tools Images
|
